Dixie Precast Products
Precast foundations, helical anchors and retaining wall systems for North America’s rail and communication networks. Every product meets or exceeds AREMA standards, and cut sheets are published for each.
Foundations7
DPS-1A

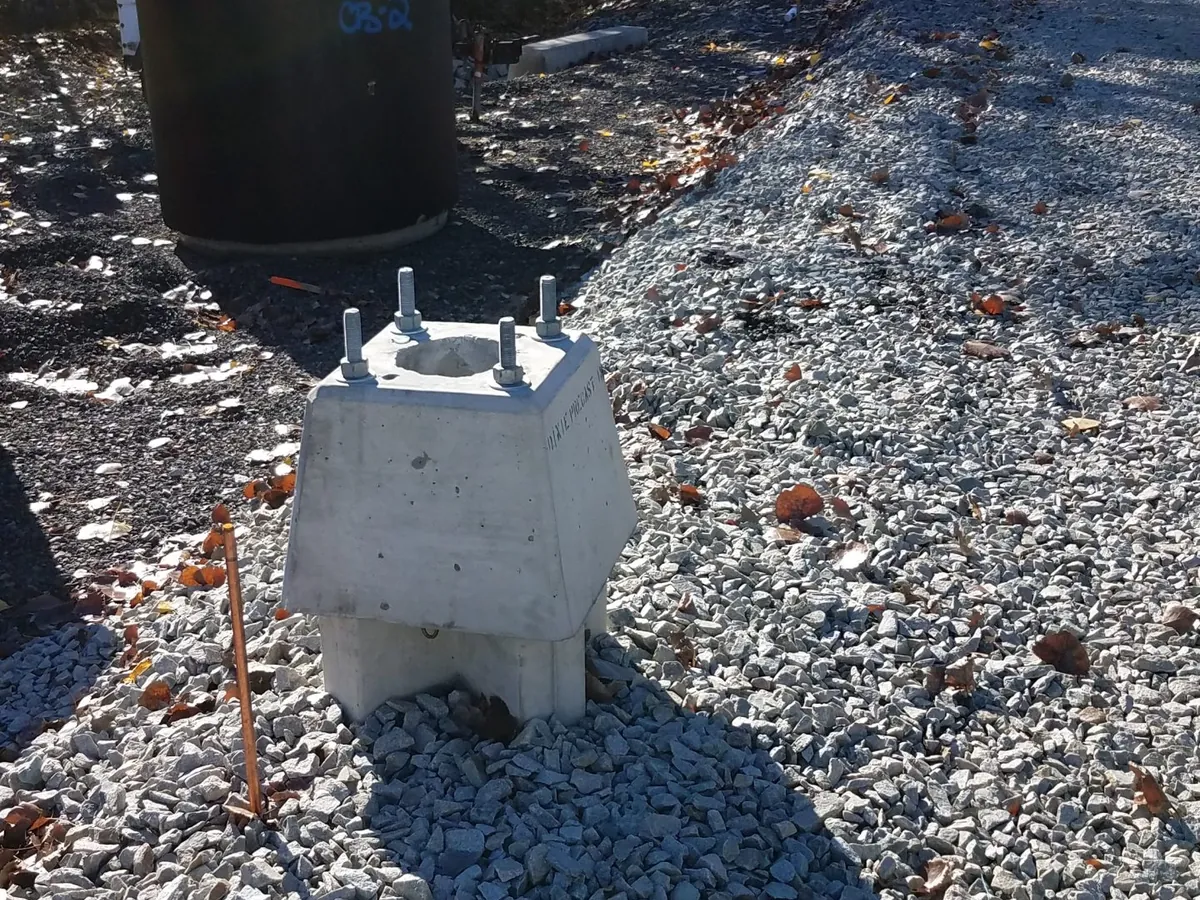

DPS-1A Flasher Foundation
Flasher and wayside signal
- Net weight
- 1,000 lbs
- Bolt spacing
- 9½″ × 9½″
- Nominal height
- 4′-6″
DPS-2A

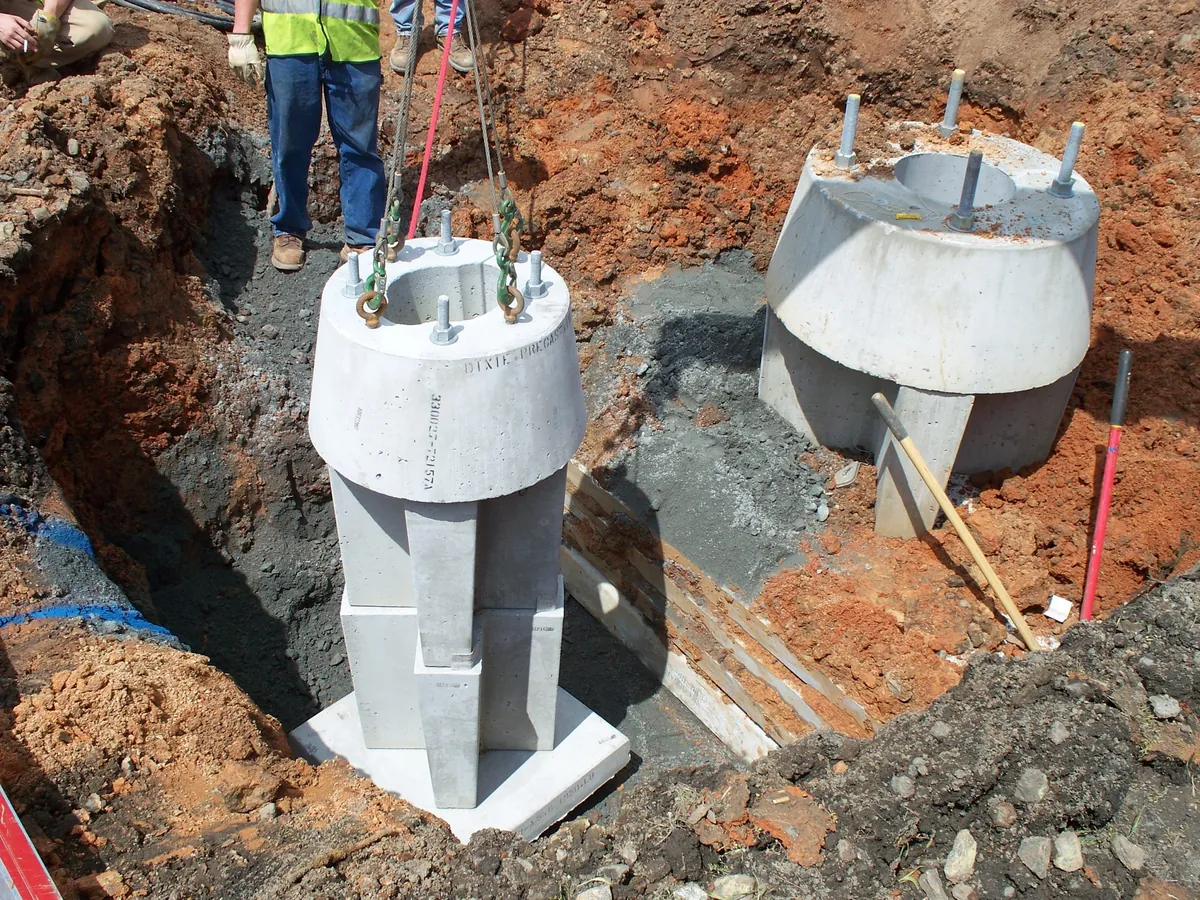

DPS-2A Gate/Wayside Signal Foundation
Crossing gate mechanism, wayside signal
- Net weight
- 2,000 lbs
- Bolt spacing
- 11 11⁄16″ sq.
- Nominal height
- 5′-7″

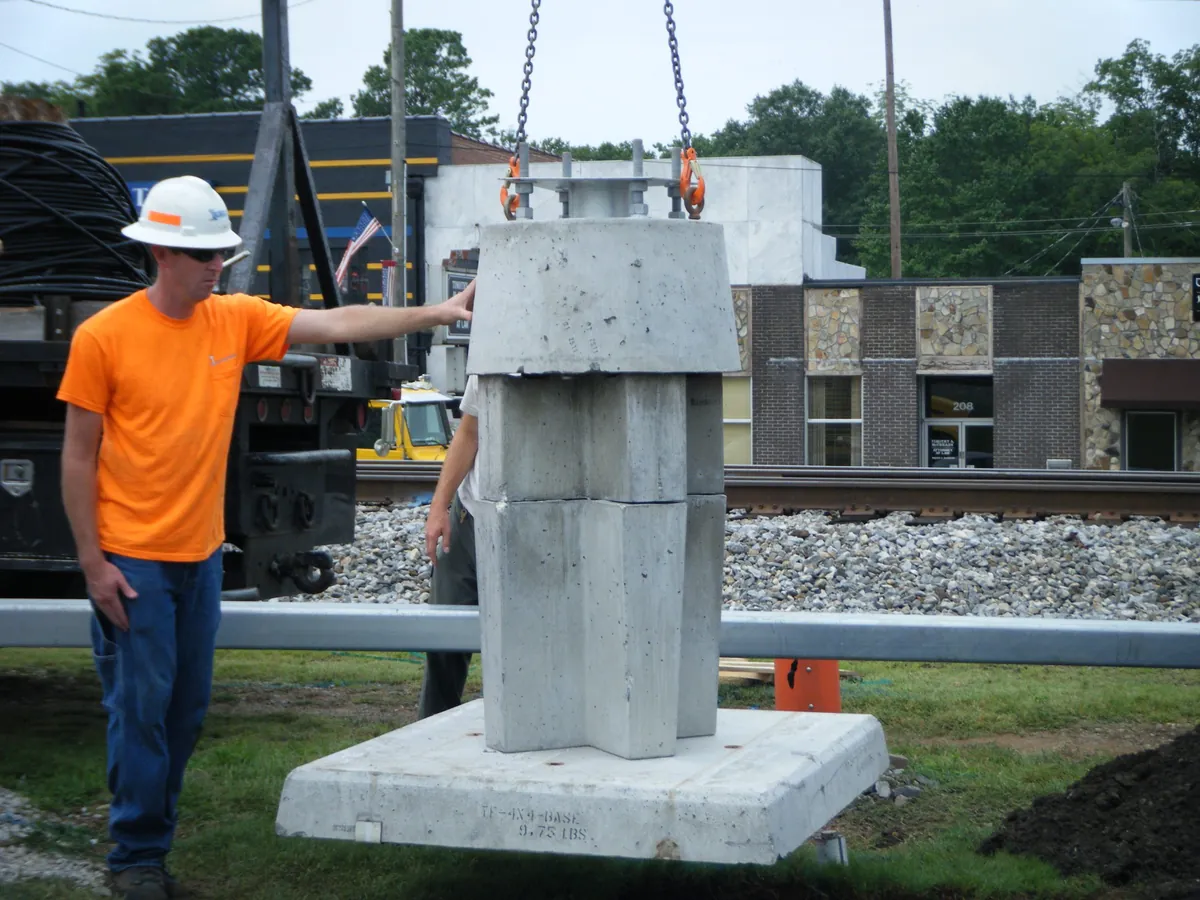

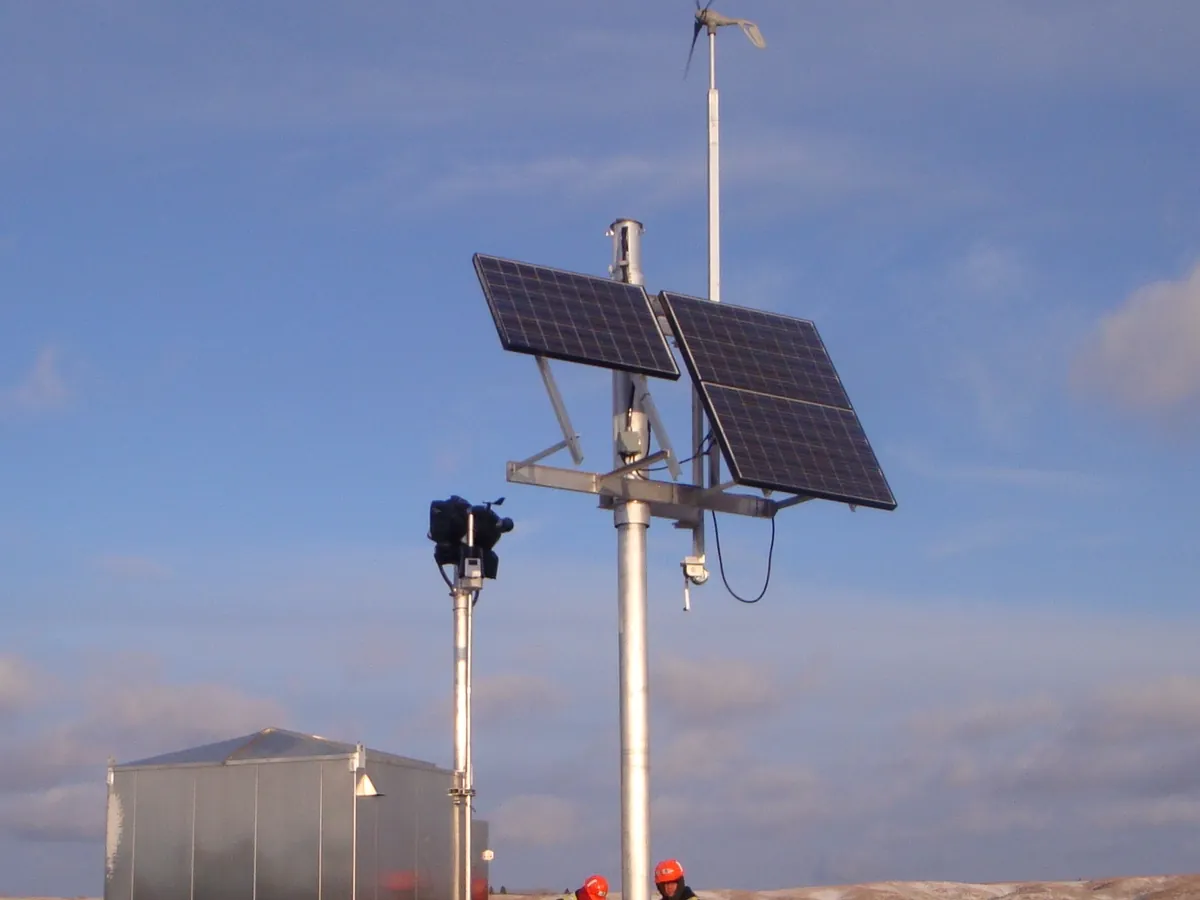

TF-2A 4X4
TF-2A 4X4 Communication Tower Foundation
Communication tower, PTC
- Net weight
- 2,600 lbs
- Bolt spacing
- 11 11⁄16″ sq.
- Nominal height
- 5′-9″

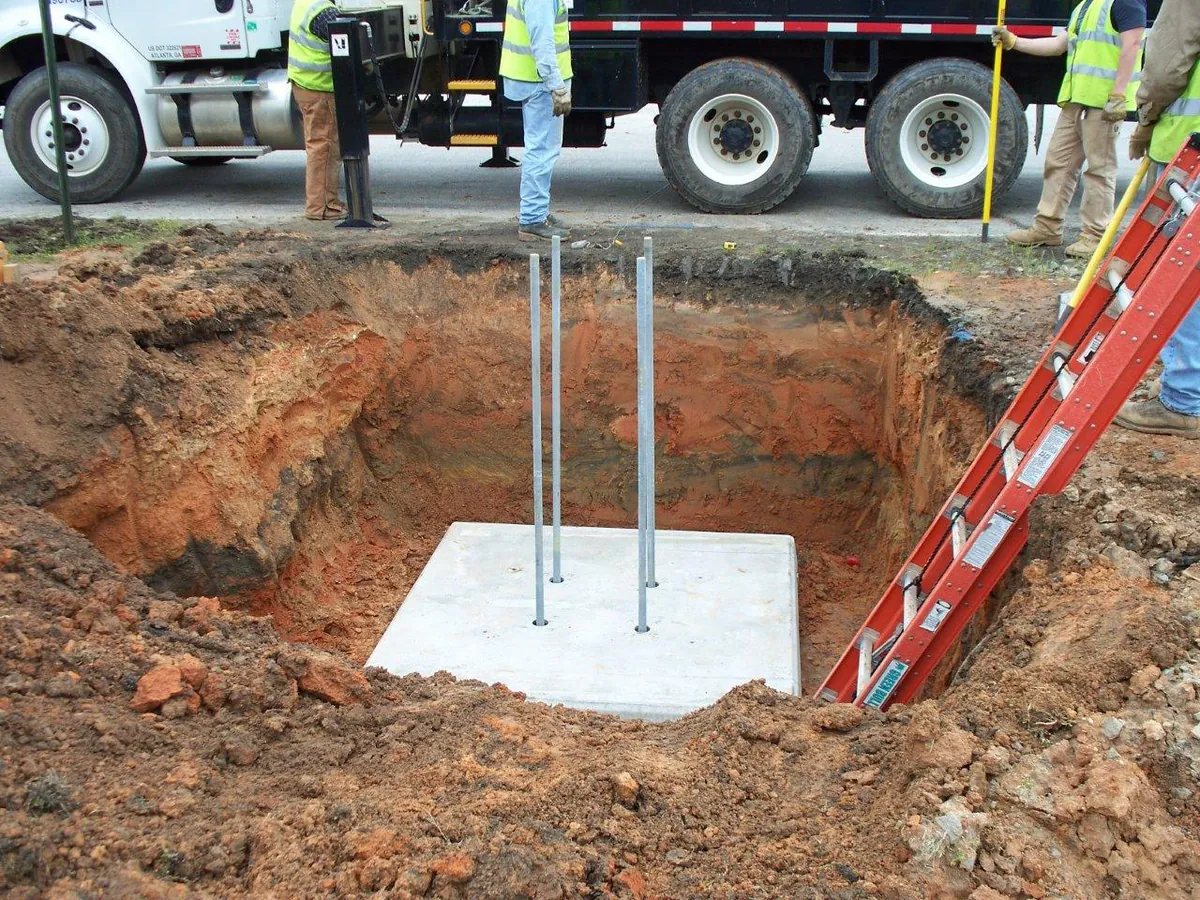

DP-4B
DP-4B Single Mast Crossing Cantilever Foundation
Single-mast four-bolt crossing gate cantilever
- Total weight
- 16,000 lbs
- Bolt spacing
- 19″ × 19″
- Assembly
- Sectional

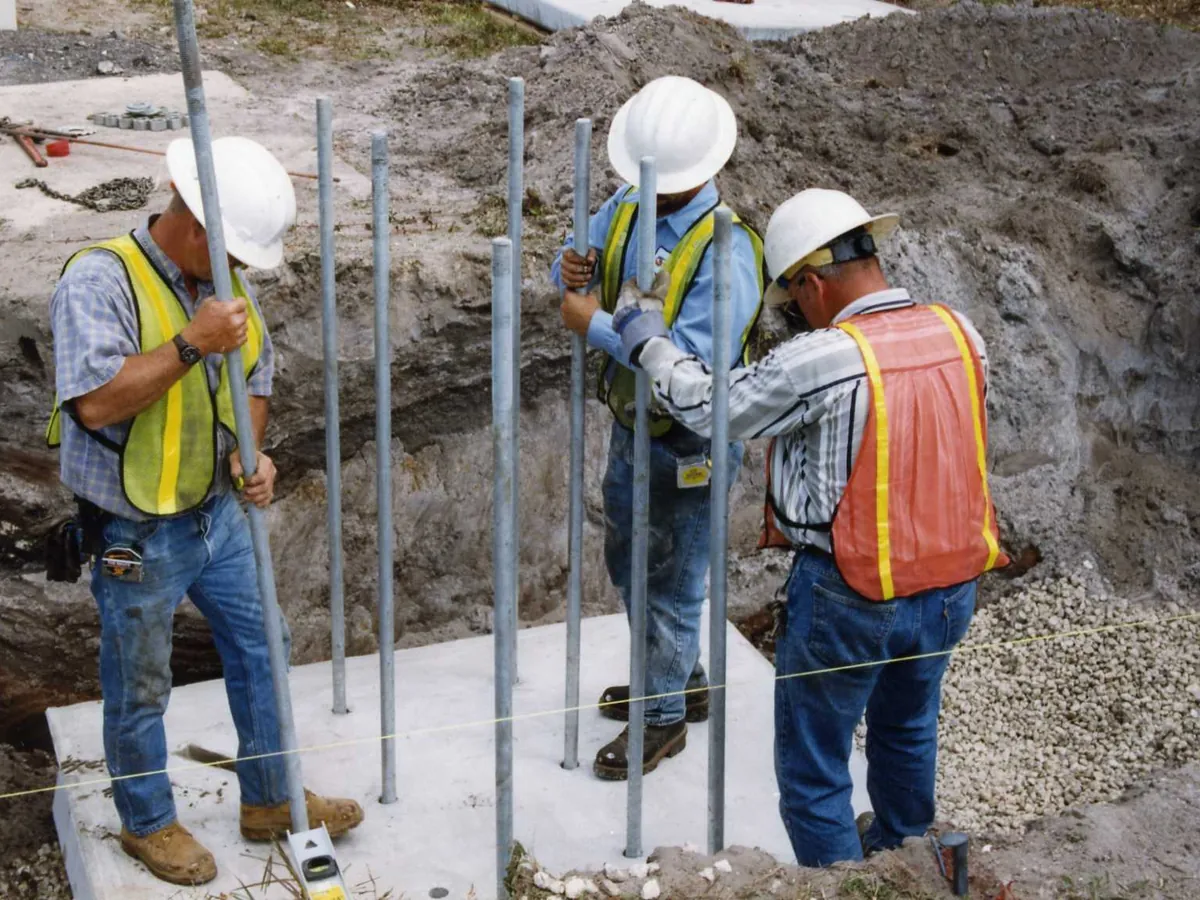

DP-8B
DP-8B Double Mast Crossing Cantilever Foundation
Double-mast four-bolt crossing gate cantilever
- Total weight
- 22,600 lbs
- Bolt spacing
- 19″ × 19″
- Assembly
- Sectional

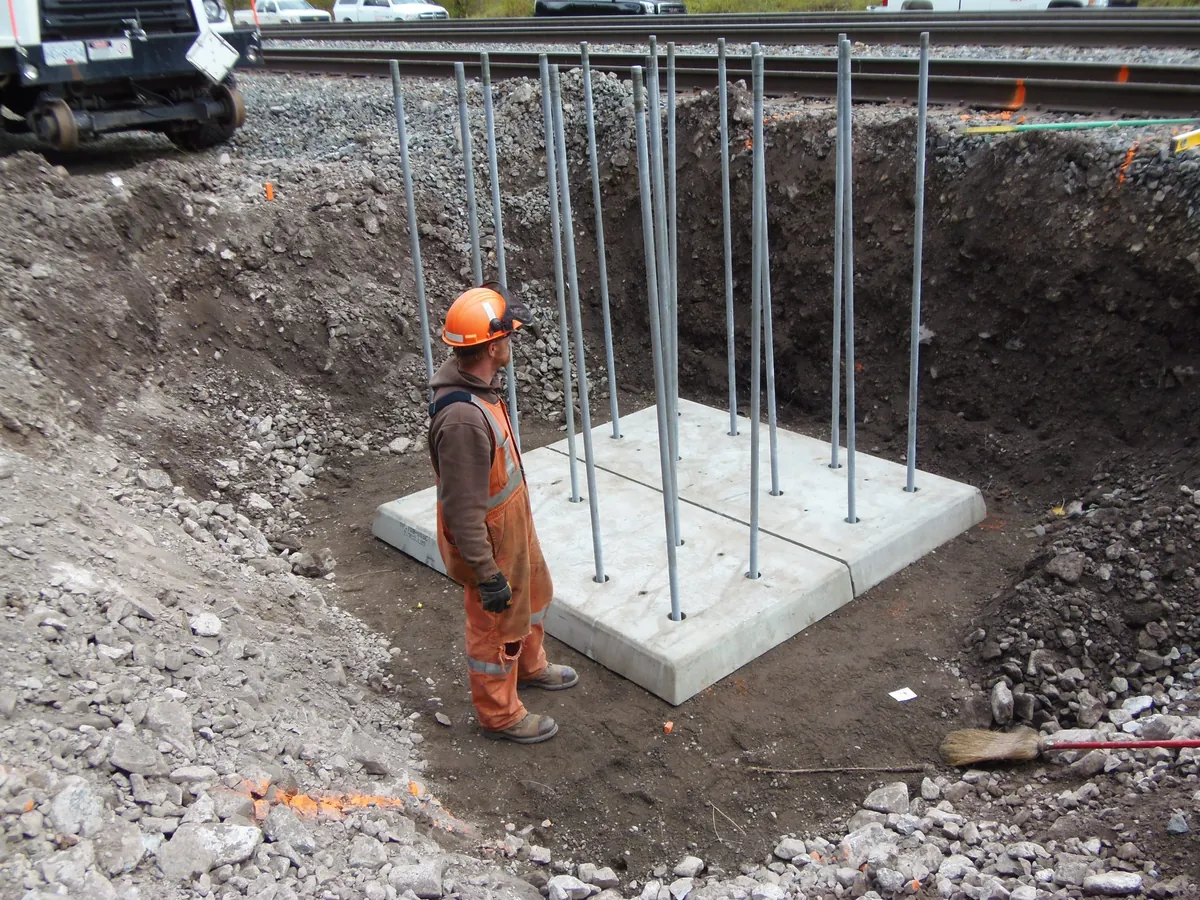

DP-16B
DP-16B Wayside Cantilever Signal Foundation
Four-mast wayside signal cantilever — three variants
- Total weight
- 32,000–39,500 lbs
- Bolt spacing
- 19″ × 19″
- Variants
- DP-16B / -8 / -10

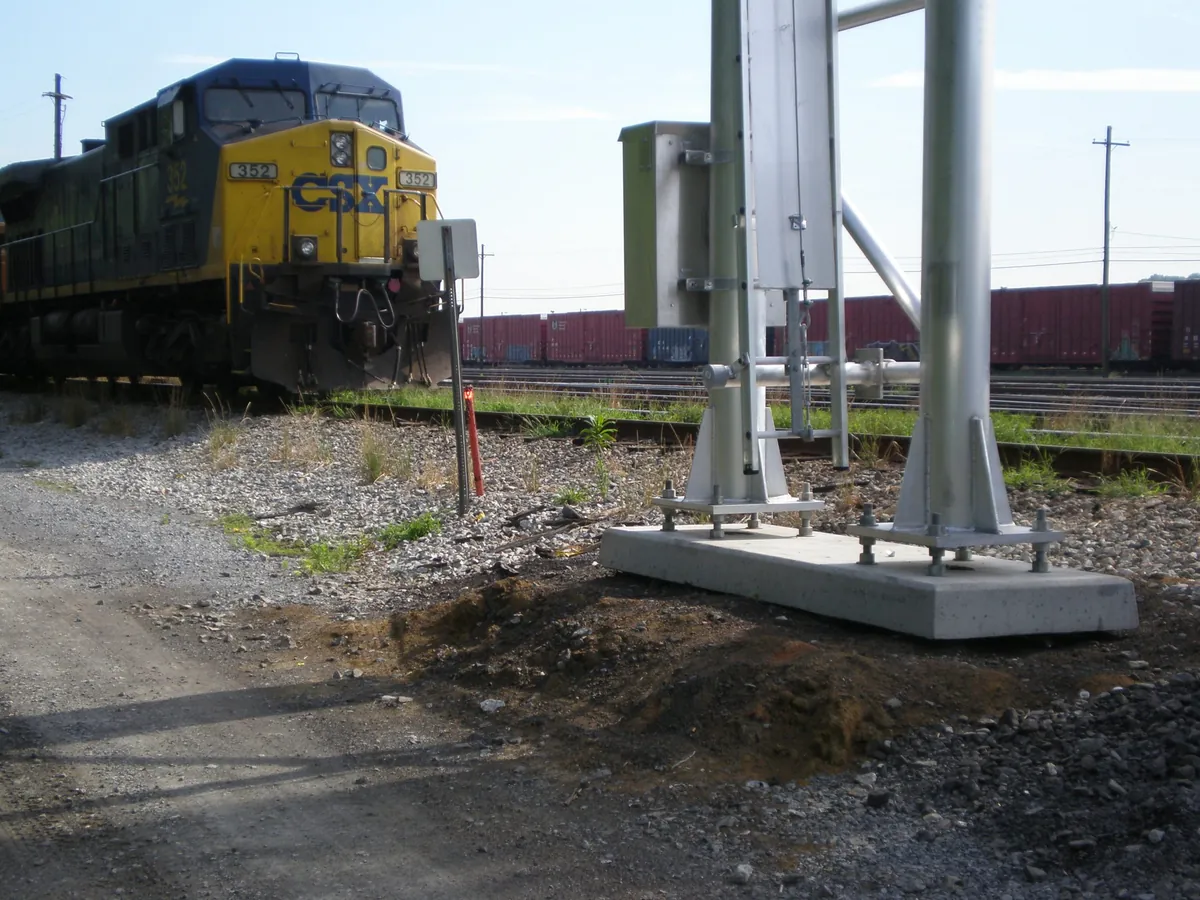

DPS-16H / DPS-90
DPS-16H and DPS-90 Signal Bridge Foundations
Wayside signal bridge
- Total weight
- 12,000 / 23,600 lbs
- Bolt spacing
- 19″ × 19″
- Nominal height
- 6′-4″ / 6′-10½″
Anchors1
Retaining Walls2
SRW

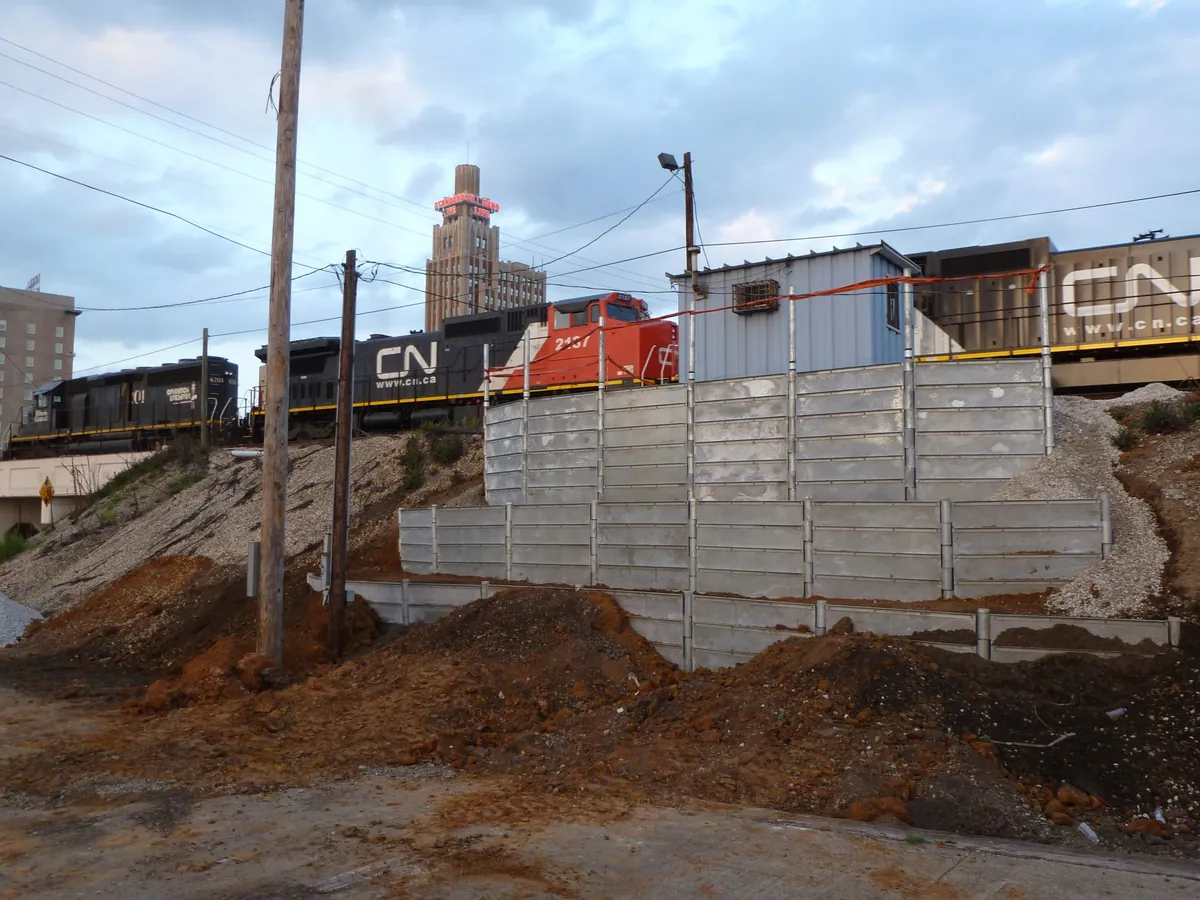

Steel Retaining Wall
Galvanized steel panel wall, with or without safety rail
- Panel weight
- 235 / 340 lbs
- Heights
- 4′ and 6′
- Configurations
- 25′ rail / 30′ no rail

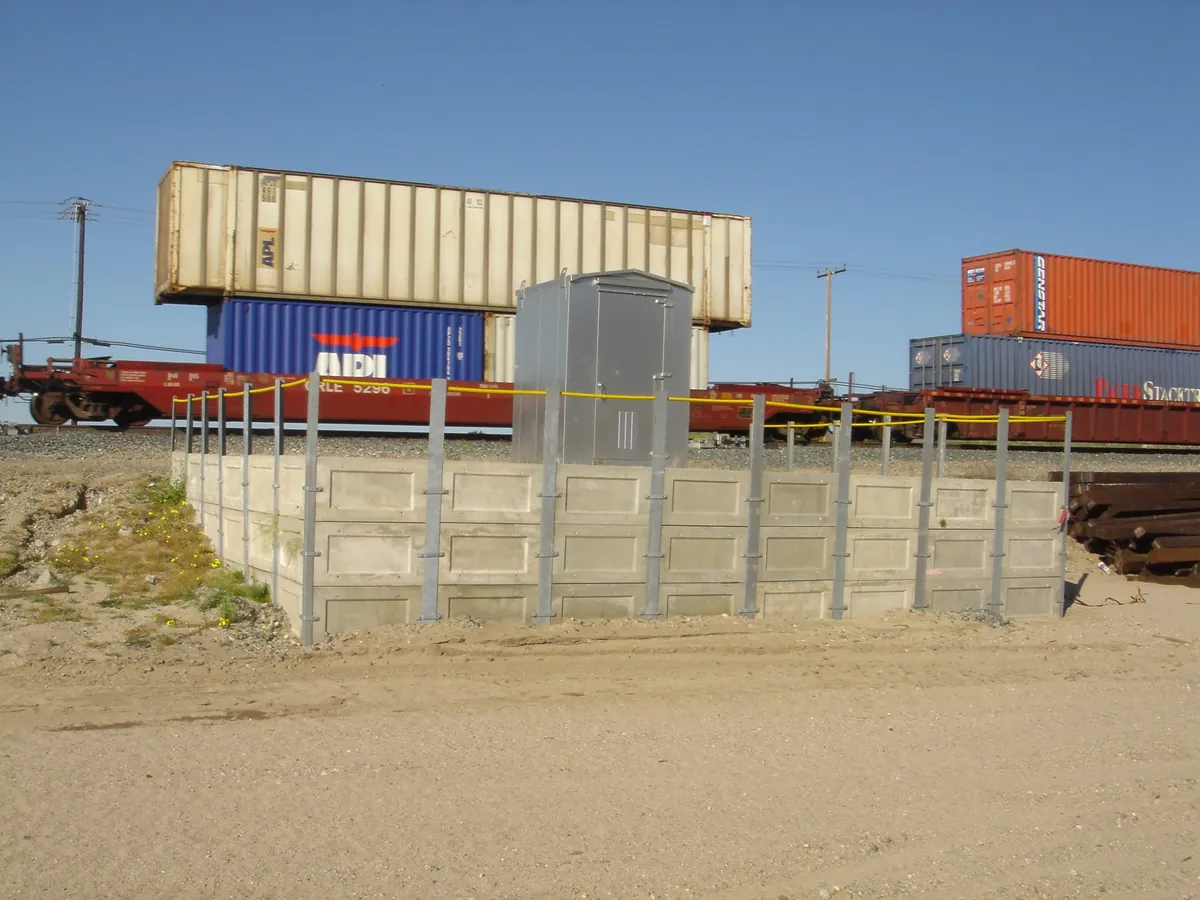

CRW
Concrete Retaining Wall
Precast panels with galvanized steel hardware
- Construction
- Precast panel
- Hardware
- Galvanized steel
- Dimensions
- Contact us
