Steel Retaining Wall
Galvanized steel panel wall, with or without safety rail. All Dixie Precast products meet or exceed AREMA standards.
Description
The Dixie Precast Steel Retaining Wall is the most versatile and easily installed retaining wall available. The walls are composed of galvanized steel panels that are available in 2’, 4’, and 6’ heights. All panels come in 5’ lengths. Designed for durability and long-term installation, all posts and associated hardware are also made of galvanized steel.
Dixie Precast packages the walls with all parts required for installation, including anchors, cables, clamps, and associated hardware. The steel retaining wall assembles similar to a door hinge. Each panel has a hinge portion with interlocking “hinge” pipes on both ends. When assembled, the panels are pinned together by the post. The hinge effect allows the wall to be contoured as required.
Recommended installations are applicable in both convex and concave arrangements. To insure proper retainage and support, all procedures should be followed, including installation of anchors and back supports. Installation heights of over 6’ shall be installed with a tiered approach. Recommended wall separation for tiered applications shall be approximately 2’ – 4’ between wall locations.
Contact us with any questions concerning fitting the Dixie Precast Steel Retaining Wall to your situation.
Specifications
| Product codes | SRW4WR, SRW6NR |
|---|---|
| SRW4WR configuration | 4′ H × 25′ with safety rail |
| SRW4WR panels | 5 — 4′ H × 5′ W galvanized steel, 235 lbs each |
| SRW4WR posts | 6 — 3″ × 7′-0″ GRS pipe, threaded one end |
| SRW4WR handrail | 3″ × 3′-6″ GRS pipe with coupling, 55′ cable, 5 cable guards |
| SRW4WR anchors | 2 galvanized anchors, 4 × 10′ cable, 24 clamps |
| SRW6NR configuration | 6′ H × 30′ without handrail |
| SRW6NR panels | 6 — 6′ H × 5′ W galvanized steel, 340 lbs each |
| SRW6NR posts | 7 — 3″ × 10′-6″ galvanized steel pipe |
| SRW6NR anchors | 3 galvanized anchors, 5 × 15′ cable, 20 clamps |
| Lifting | 2 — ½″ × 4½″ eye bolts supplied |
| Patent | Covered by one or more US patents |
Documents

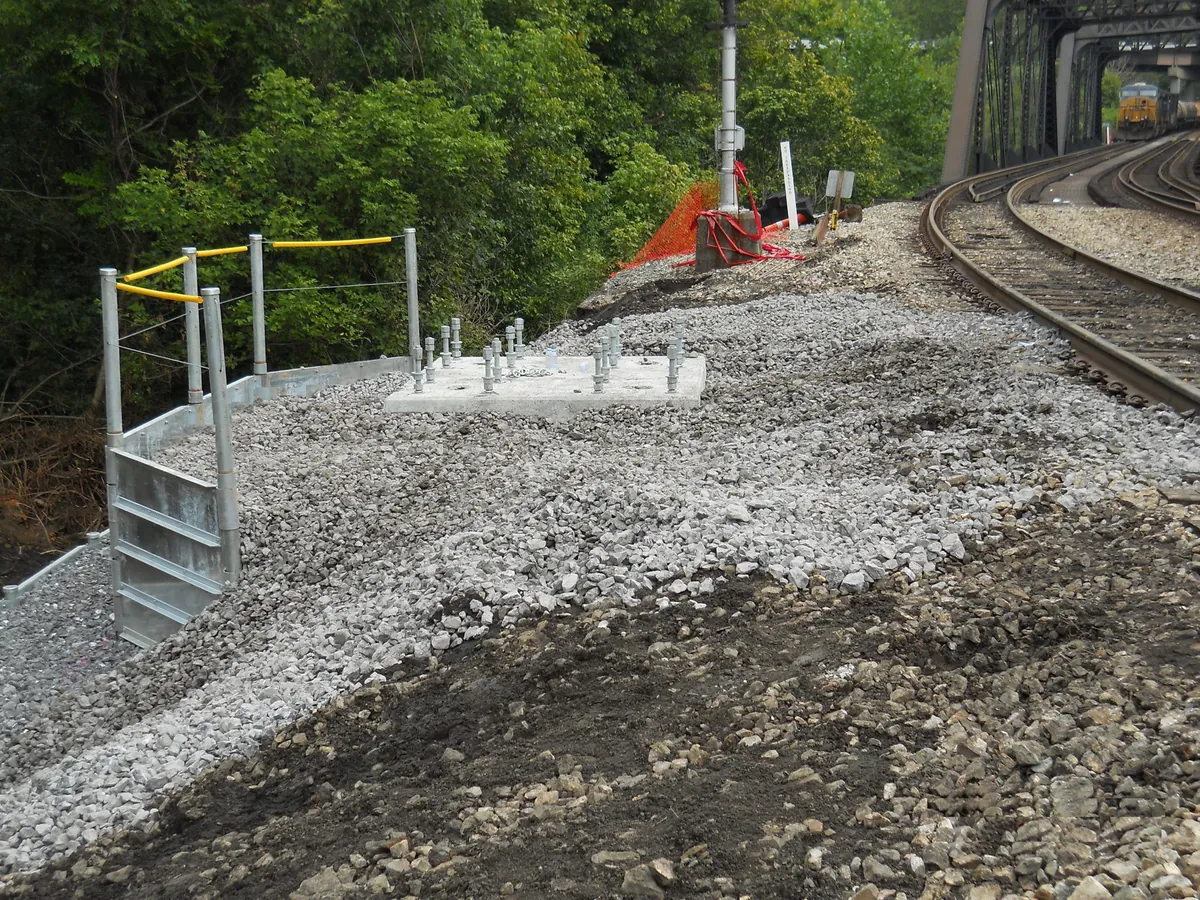

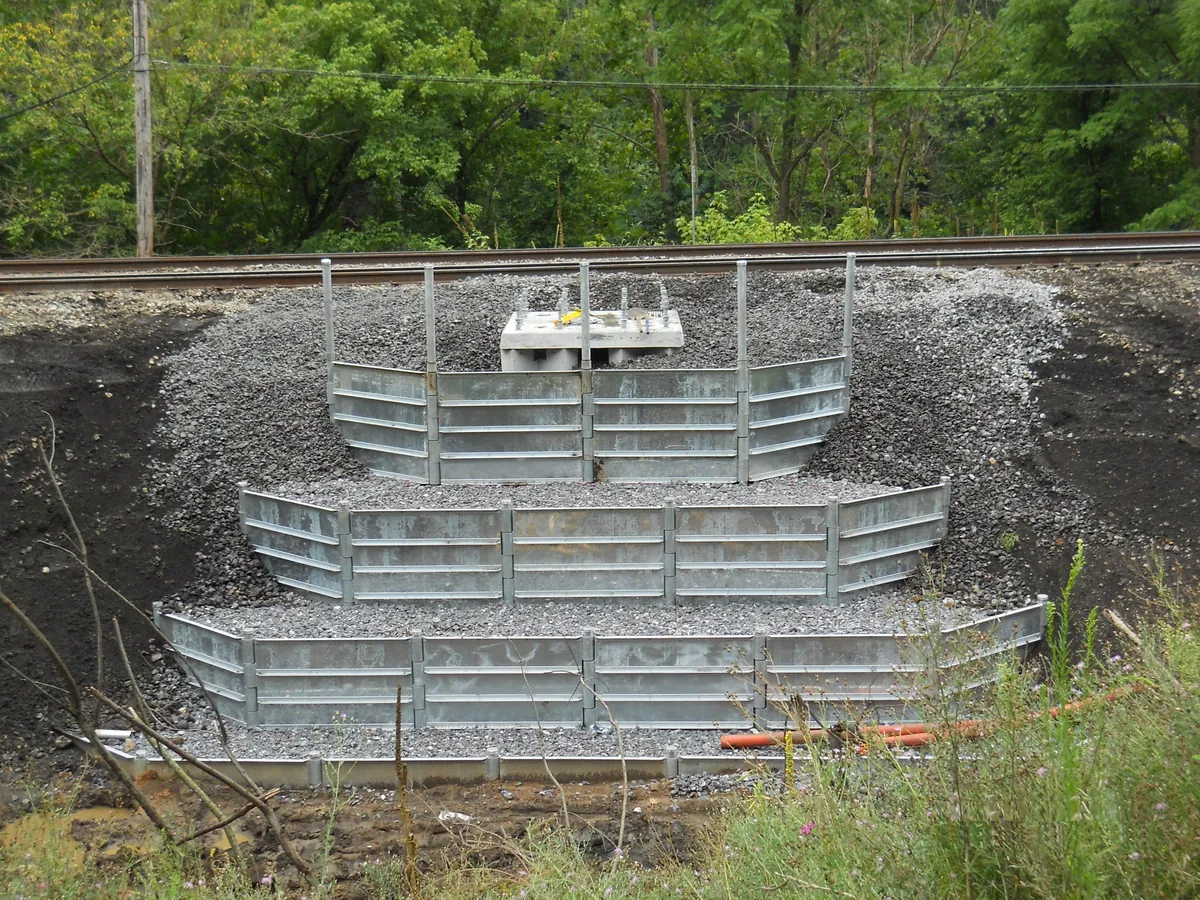

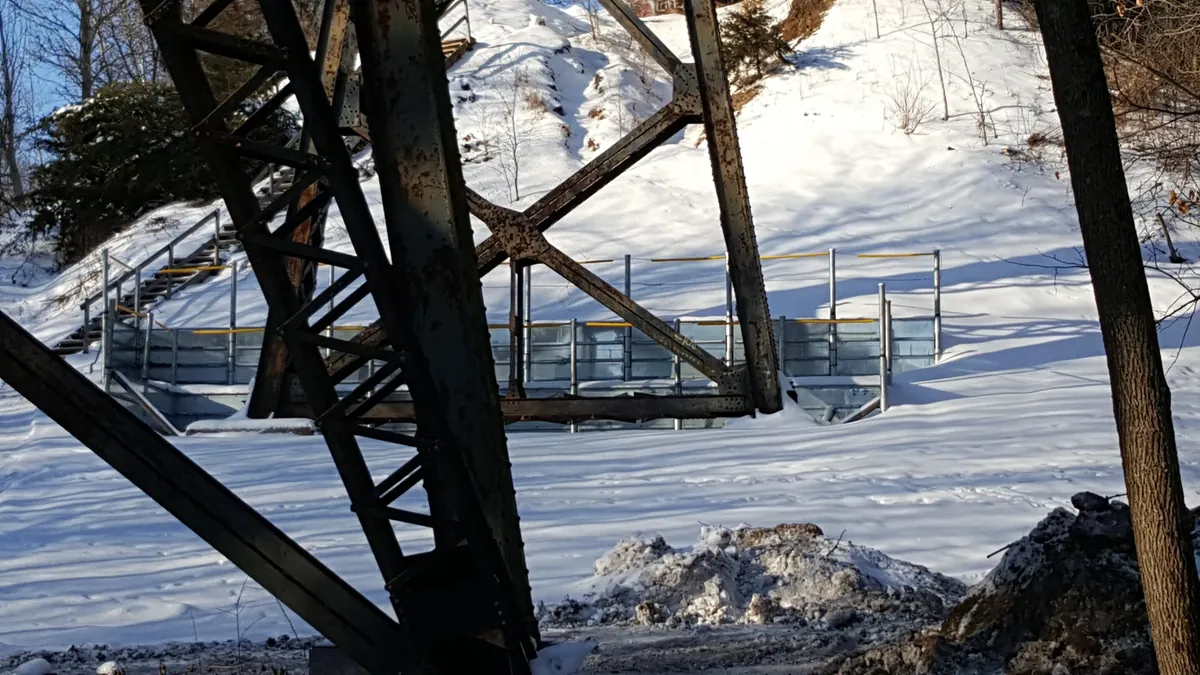

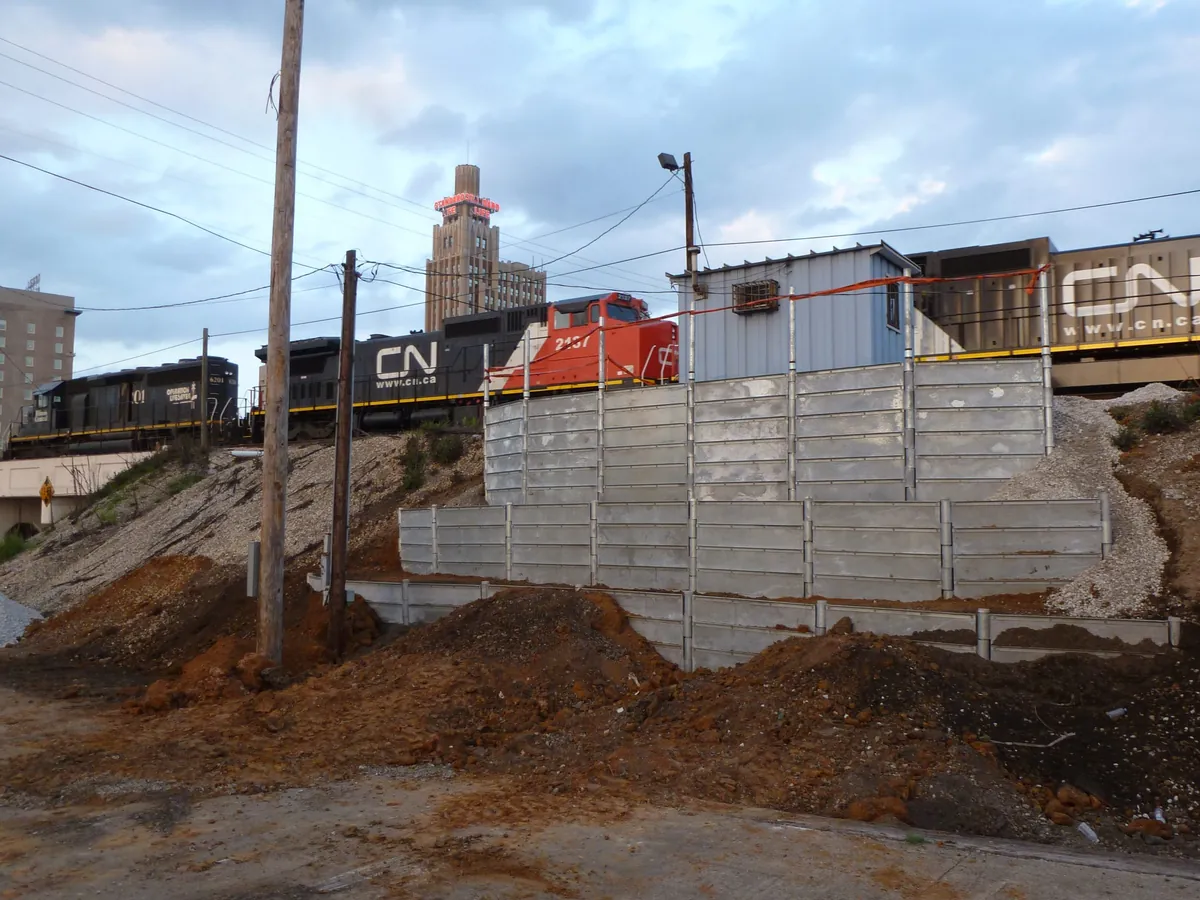

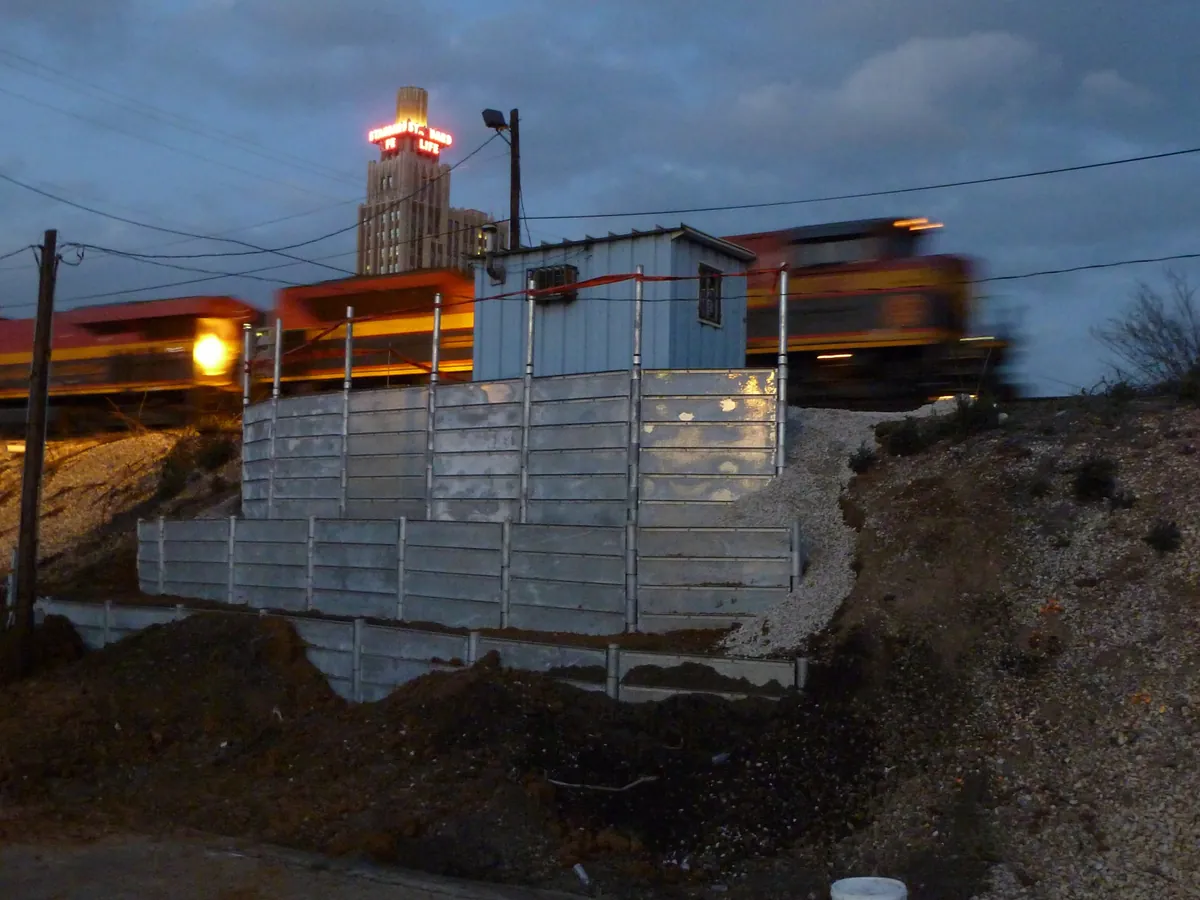

Installed on site
