TF-2A 4X4 Communication Tower Foundation
Communication tower, PTC. All Dixie Precast products meet or exceed AREMA standards.
Description
The Dixie Precast TF-2A 4X4 is a precast foundation that is commonly used for communication tower applications. The TF-2A has a standard 11 11/16” x 11 11/16” bolt spacing, which matches the common mounting for 5” masts. The foundation can be used with tilt tower or monopole applications.
Dixie Precast supplies the TF-2A foundation pre-assembled, so it arrives at the job site ready to install. The foundation has lifting inserts cast in the top section, which facilitate the easy placement of the foundation.
Dixie Precast utilizes the same thread on all of the lifting inserts throughout our product line, so the same lifting eyes can be utilized to set all of our foundations. The TF-2A can also be utilized for solar array mounting, column support, and other applications. The sectional design allows us to supply the foundation in various heights, insuring that the foundation is sized to meet your loading requirements.
The Dixie Precast TF-2A 4X4 Foundation meets or exceeds current AREMA Standards.
Specifications
| Product code | TF-2A 4X4 |
|---|---|
| Applications | Communication tower, PTC |
| Nominal height | 5′-9″ |
| Anchor bolt spacing | 11 11⁄16″ × 11 11⁄16″ centers |
| Anchor bolts | Galvanized steel, Grade A449 or higher |
| Net weight | 2,600 lbs |
| Base dimension | 48″ |
| Delivery | Shipped fully assembled |
| Concrete | 5,000 psi min. at 28 days |
| Standard | Meets or exceeds AREMA |
Documents

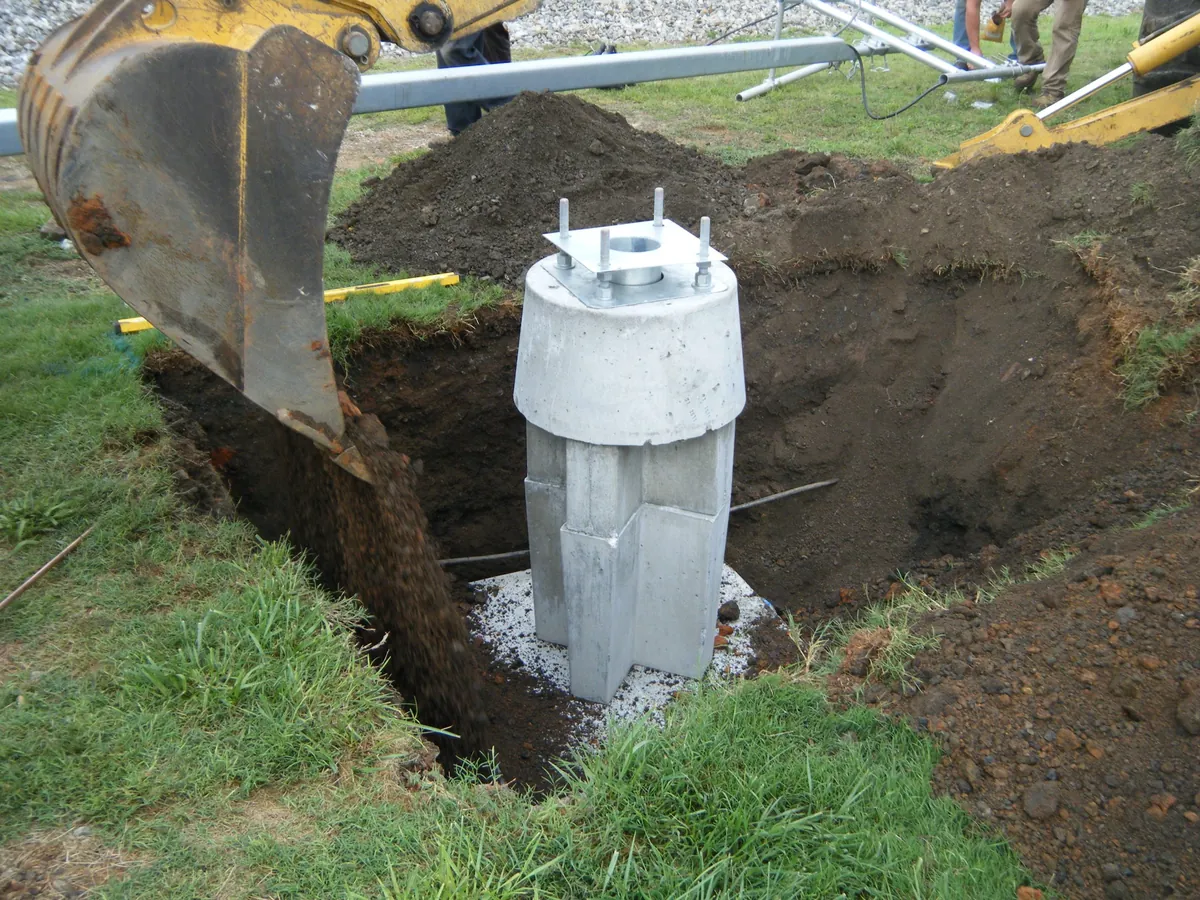

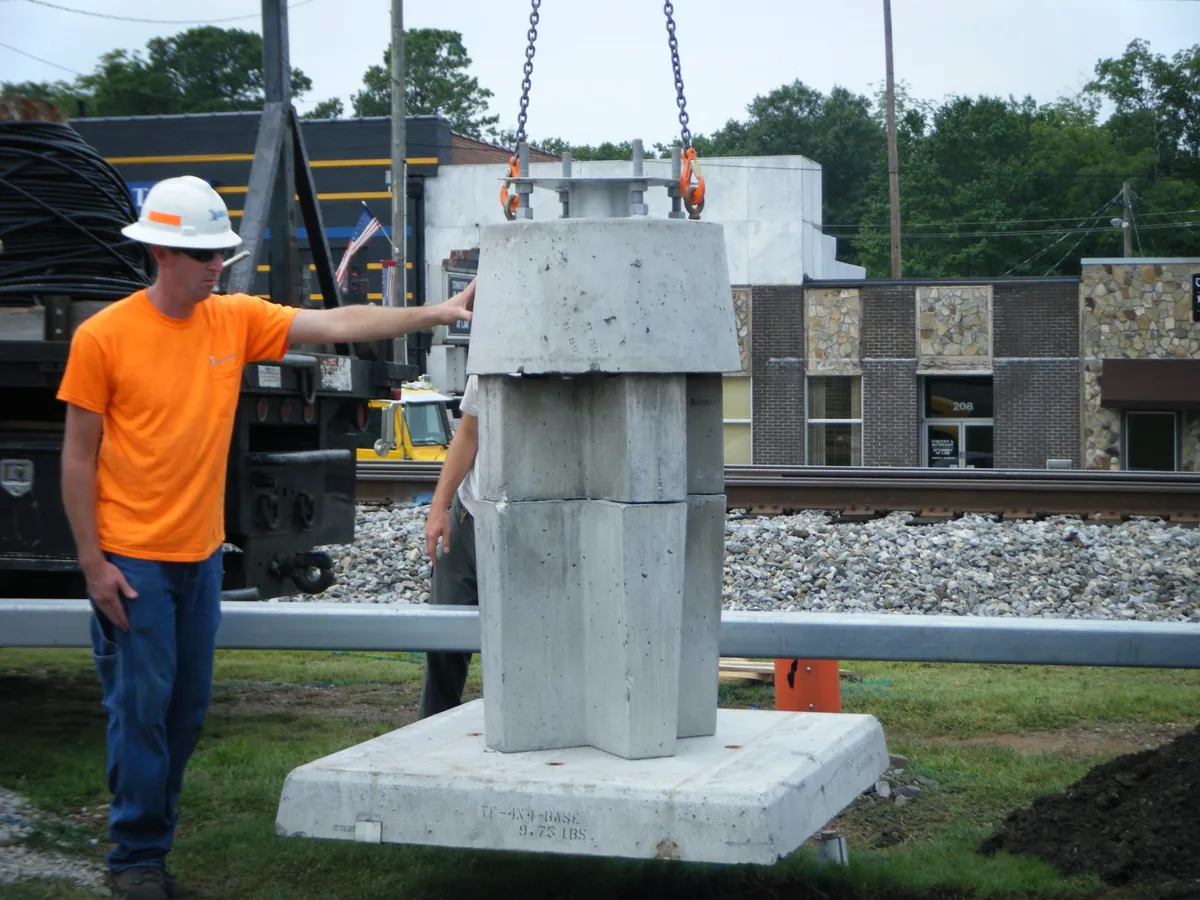

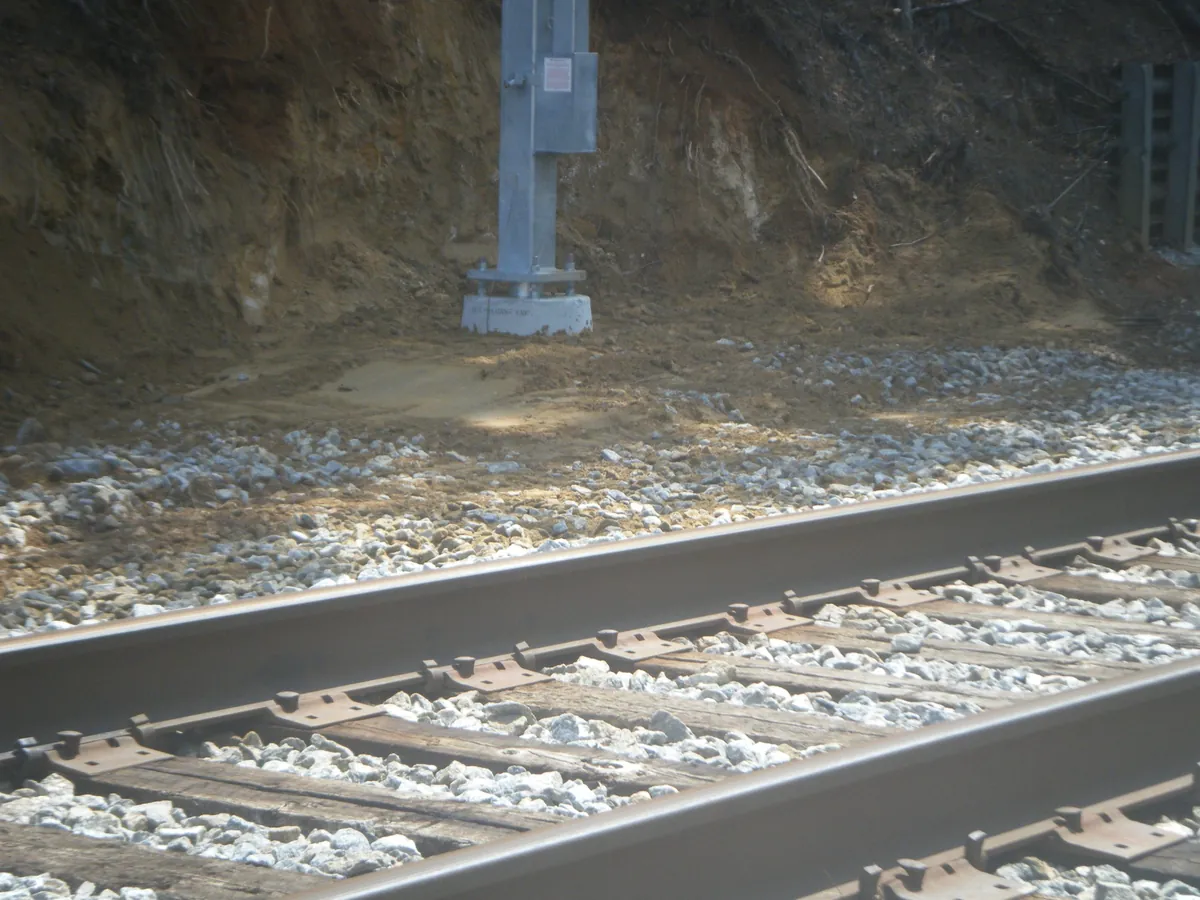

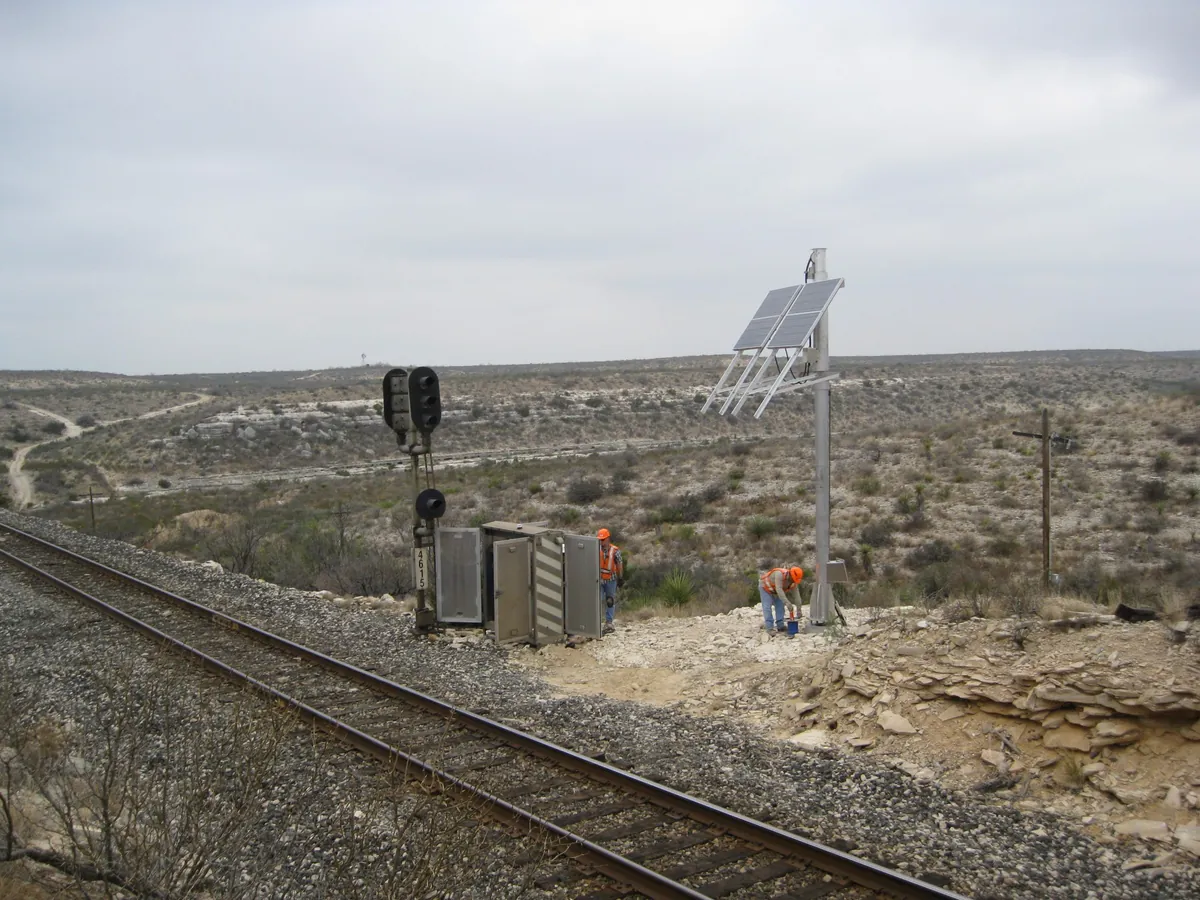

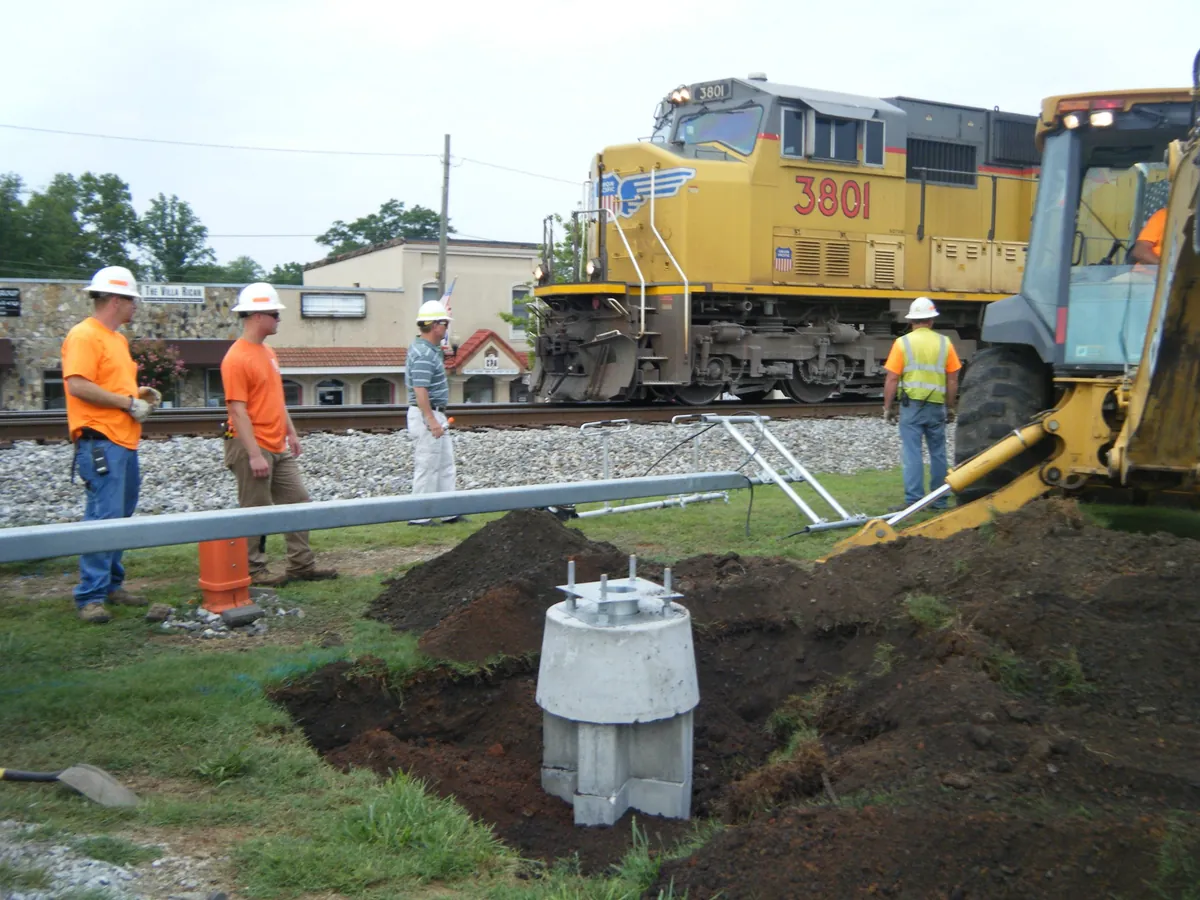

Installed on site
